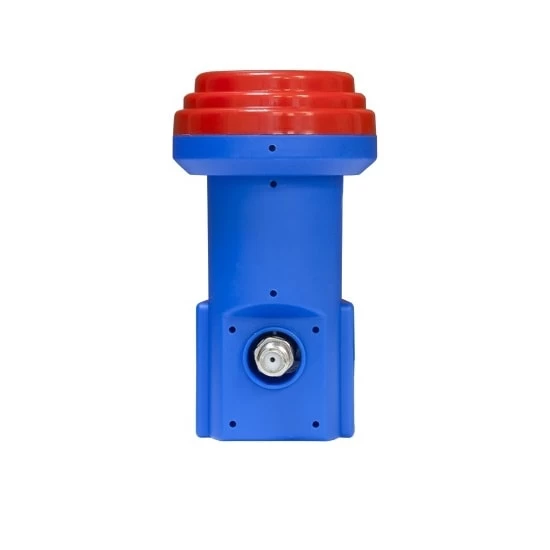

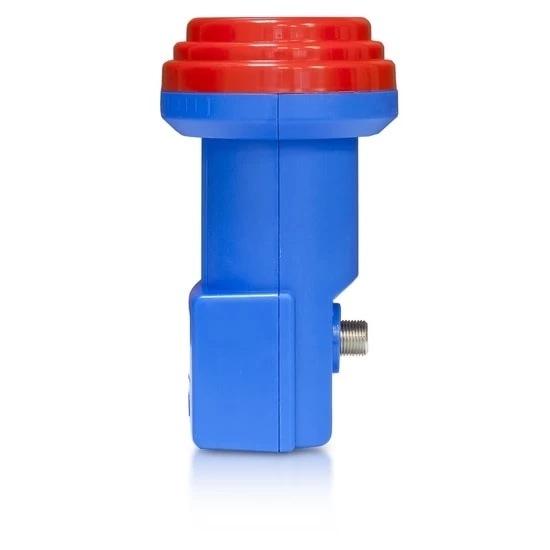

The AB LNB01 Single Red Edition it's a 4K lnb with LTE filtering and it allows to connect a receiver with a single tuner.

Technical specifications

Input Frequency (GHz)

• Low Band:10.7~11.7
• High Band:11.7~12.75

Output Frequency (MHz)

• Low Band:950~1950
• High Band:1100~2150

Cross Pol. Isolation (dB)

• 20 (Typ.)

Conversion Gain 6

• 0 dB(typical) 55-70dB

Gain Flatness

• ±0.5dB/36MHz

L.O. Frequency

• Low Band:9.75 GHz
• High Band:10.6 GHz

L.O. Stability

• ±500KHz(Max.)@25°C
• ±1MHz(Max.)@(-40°C to +60°C)

L.O. Phase Noise

• -65dBc/Hz@1KHz
• -85dBc/Hz@10KHz
• -95dBc/Hz@100KHz

1dB Compression point (dBm)

• 0 (Min.)

Image Rejection (dB)

• >40 (Min.)

Output VSWR

• 2.5:1(Max.)

Output impedance (Ω)

• 75

Output Connector

• F Type Female 1x

Polarity Select Control

• V:11.5~14V DC
• H:16~19V DC

Band Select Control (KHz)

• High Band:22±4
• Low Band:0

DC Current Consumption (mA)

• 110(Max)
