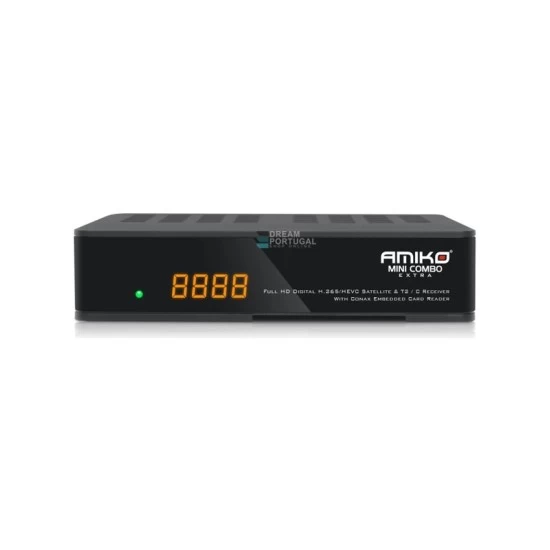

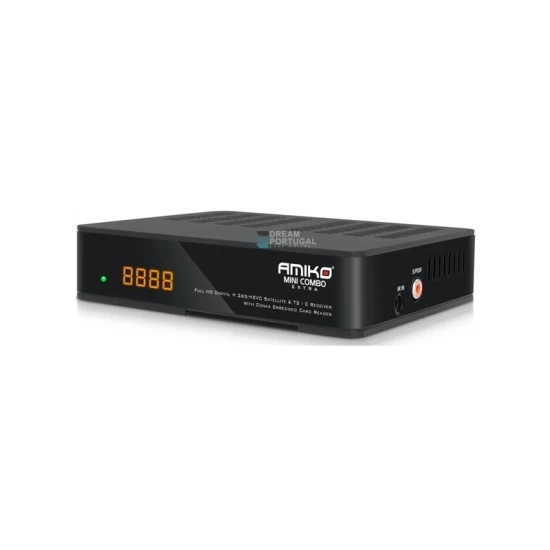

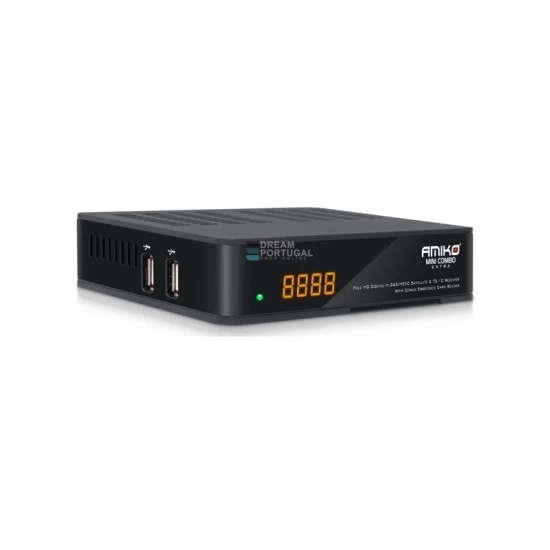

Amiko Mini Combo Extra

Amiko Mini Combo Extra

45.00€
Ex Tax: 36.59€
  • 3 or more 44.00€
  • 5 or more 43.00€
  • 8 or more 41.00€
Brand:Amiko
Product Code: Amiko Mini Combo Extra
Stock Instock

Overview

Amiko Mini Combo ExtraAmiko Mini Combo Extra - Full HD digital H.265 HEVC satellite, cable, terrestrial and media player receiver.Main features:DVB-S2 Satellite & DVB-T2/C Terrestrial / Comb...

Available Options

Amiko Mini Combo Extra

Amiko Mini Combo Extra - Full HD digital H.265 HEVC satellite, cable, terrestrial and media player receiver.



Main features:

DVB-S2 Satellite & DVB-T2/C Terrestrial / Combo Receiver

One Conax Embedded card reader

H.265 / HEVC Codec support

5000 channels (TV and Radio) programmable

External IR Sensor (Included in the package)

Two High Speed USB 2.0 Connection

Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)

YouTube videos

RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)

DiSEqC 1.0, 1.1, 1.2 and USALS Compatible

Full HD (1080p) Output via HDMI

Channel Recording to External Storage Devices (from one frequency only)

Timeshift support

Channel Recording & Timeshifting Simulteniously (optional, only from same frequency)

Channel switching time less than 1 second

True-color, User Friendly On-Screen Display (OSD)

Full Picture In Graphic (PIG) function

Electronic Program Guide (EPG) for on screen channel information

Subtitle supported

Teletext supported by VBI insertion and software emulation

Parental lock facility by channel and program event

Program and Channel information transfer from receiver to receiver

Multi-Language support

RTC (Real-Time-Clock)

Power Consumption in Stand-By: <0.5W


Technical features:

Tuner & Demodulation

Tuner Type: DVB-S / DVB-S2

Input Connector: F-type, Connector, Female

Loop Through: F-type, Connector, Female

Signal Level: -65 to -25 dBm

LNB Power & Polarization: Vertical: +13V/+14V,

Horizontal: +18V/+19V

Current: Max. 300mA

Overload Protection

22KHz Tone Frequency: 22±1KHz

DiSEqC Control: Version 1.0, 1.1, 1.2, USALS

Demodulation: QPSK, 8PSK

Input Symbol Rate: 2-45 Mbps,

FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto


Tuner Type: DVB-T2 / DVB-C

Frequency Range: 48~862MHz

RF Input Level: -80dBm to -20dBm

Antenna power output: DC 5V at max 75mA, Overload protection

Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended

Input Symbol Rate: 1.0 ~ 7.0Ms/s

Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated

Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6


System Resources

Main Processor: up to 2000DMIPS CPU

Flash Memory: 8 MiB

DDR RAM: 256 MiB (DDR3 1866MHz)

MPEG TS A/V Decoding

Transport Stream: MPEG-2, MPEG-4 (H.264)

Input Rate: Max.120Mbit/s

Aspect Radio: 4:3, 16:9, Letter Box

Video Decoding: HEVC MP@L4.1, MPEG2 MP@HL, MPEG-4 part 10/H.264

Video Resolution: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080p/i

Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital, AAC

Audio Mode: Left / Right / Stereo/ Mono

Sampling Rate: 32, 44.1 and 48KHz

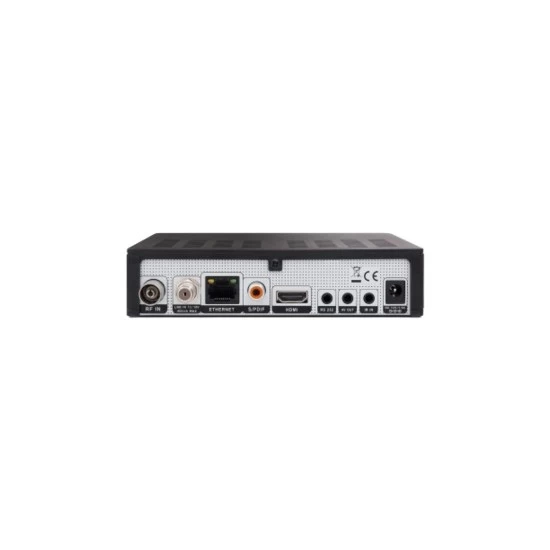

A/V & Data Input/Output

AV OUT: Video RGB&CVBS output, Audio L/R output (RCA)

LAN: 10/100M RJ-45 Ethernet Connection

USB: Two USB 2.0 slots

HDMI: VER1.3, Type A, Dolby Digital Bit-Stream Output

S/PDIF: Coaxial

IR: External IR input (jack type)


Physical Specifications

Size[W*H*D]: 144mm x 40mm x 110mm

Net Weight: 0.50 Kg

Operation Temperature: 0°C~+45°C

Storage Temperature: -10°C~+70°C

Storage Humidity: 5%~95% RH (Non-Condensing)
