MAG 324 W2 IPTV Set-Top-Box

MAG 324 W2 IPTV Set-Top-Box

108.00€
Ex Tax: 87.80€
  • 3 or more 107.00€
  • 5 or more 106.50€
Brand:Infomir
Product Code: Mag 324 W2
Stock Instock

Overview

MAG 324 W2 IPTV Set-Top-BoxIPTV SET-TOP BOX MAG324 w2MAG324w2 is a version with a built-in Wi-Fi module of 802.11 b/g/n/ac standard. This modification enables users to establish a network co...

MAG 324 W2 IPTV Set-Top-Box

IPTV SET-TOP BOX MAG324 w2


MAG324w2 is a version with a built-in Wi-Fi module of 802.11 b/g/n/ac standard. This modification enables users to establish a network connection without additional equipment.


The cost-effective solution for your IPTV/OTT project with a full set of functions. MAG324w2 is a basic set-top box on a Broadcom chipset that supports HEVC compression. The device, therefore, runs quickly and with minimal network load. Through its HDMI 1.4b output, you can enjoy high-quality video.

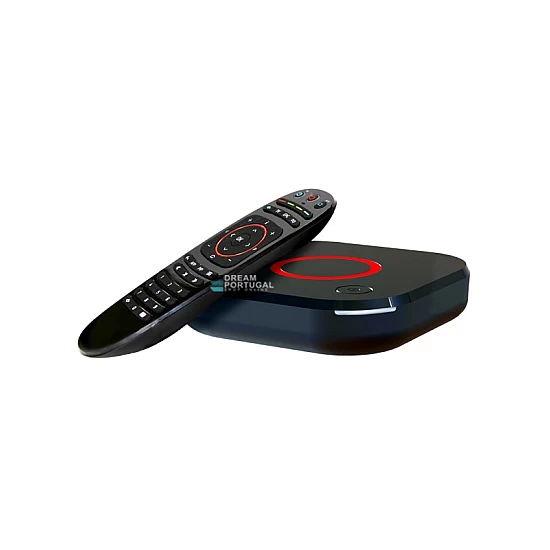

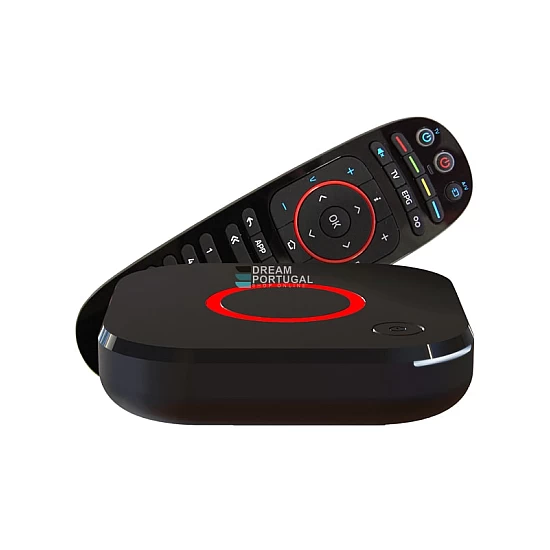

We have also completely changed the case and remote control design, making it more ergonomic and easier to use.

Main features

BCM75839

Linux 3.3

OpenGL ES 2.0

HEVC

512 MB Flash

1 GB RAM

Wi-Fi Built-in ( 802.11 b/g/n/ac )


Useful Features

HEVC support

The set-top box plays the HEVC-compressed files. This means the network load will be lower, even when delivering high-quality content.


3D video support

The set-top box plays advanced 2D and 3D graphics with OpenGL ES 2.0 support.


High-performance

Modern high-performance processor on the Broadcom chipset and 1 GB RAM is good enough to playback the high-quality video.


Ergonomic design

The set-top box and remote control are presented in the new Micro Fusion design. They will look good in any interior.


Specifications

Dimensions

  • Width/depth/height (mm): 115x115x28
  • Weight (g): 170


Hardware

  • Chipset: BCM75839
  • Processor: MIPS 4KE Dual Core CPU 750Mhz
  • Performance: 2000 DMIPS
  • RAM: 1 GB
  • Flash memory: 512 MB NAND


Software

  • Operating system: Linux 3.3
  • Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
  • Middleware supported: Ministra multiscreen TV platform

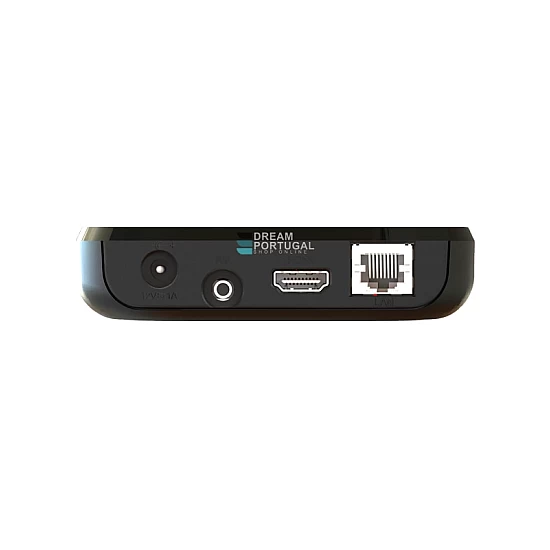

Interfaces

  • HDMI 1.4-output
  • Composite + stereo A/V output
  • Ethernet 100 Mb/s
  • 2x USB 2.0
  • Wi-Fi b/g/n/ac 1x1


Sources of media content

  • PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB-devices


Audio & video

  • Audio сodecs: MPEG-1 layer I/II/III, WMA, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital (optional)
  • Audio formats: MP3, MPA, M4A, WMA, Ogg, WAV
  • Video modes: 1080i, 1080p, 720p, 576p, PAL, NTSC
  • Video сodecs: MPEG-1/2, MPEG-4, H.264/AVC HP@L4.2, WMV9, H.265/HEVC Main and Main10 profile up to 1080p at 60 fps, XviD, 3D video support
  • Video containers: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
  • Image formats: JPEG, PNG, BMP, GIF, RAW
  • Subtitles: ttxt sub*, DVB, WebVtt, PGS, Ass/Ssa*, Srt*, Sub*, Closed captions
  • Playlist formats: M3U
