Technisat DigiDish 45

Technisat DigiDish 45

59.00€
Ex Tax: 47.97€
Brand:Technisat
Product Code: DigiDish 45
Stock Instock

Overview

Technisat DigiDish 45High-performance aluminium offset dish antenna (45 cm)The Technisat DigiDish 45 consists of high-quality aluminium and is powder-coated on both sides. The carefully calc...

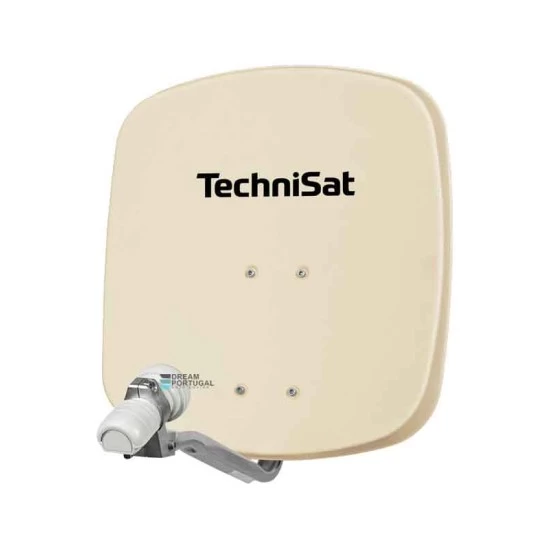

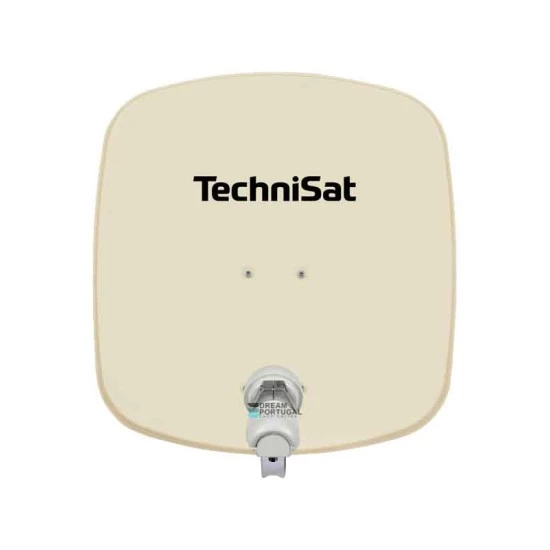

Technisat DigiDish 45

High-performance aluminium offset dish antenna (45 cm)


The Technisat DigiDish 45 consists of high-quality aluminium and is powder-coated on both sides. The carefully calculated parabolic shape ensures that the reception performance of the DigiDish 45, which has a diameter of only 45 cm, is better than that of many 60 cm dishes - in spite of the much smaller size.


Simple installation

The DigiDish 45 is - just like the DigiDish 33 - ideal for mounting on balconies. The pre-assembled mounting bracket ensures installation of the dish is quick and easy.


General characteristics

Top features

Only 45 cm

Aluminium

1 or 2 participants

1 orbital position (for example Hispasat 30.0 ° W)

Especially suitable for balcony installation / Ideal for the city

Ideal for ground and wall mounting

Material thickness  - 1 mm

Coating Powder-coated on both sites

Wall bracket Included


Input frequency range

Lower frequency range - 10.7 - 11.7 GHz

Upper frequency range11.7 - 12.75 GHz


LNB

LNB modulation - 22 kHz


LOF

Lower frequency range - 9.75 GHz ± 3MHz

Upper frequency range - 10.6 GHz ± 3MHz


Noise factor

Lower frequency range - 0.7 dB max.

Upper frequency range - 0.7 dB max.


Output frequency range

Lower frequency range - 950 - 1950 MHz

Upper frequency range - 1100 - 2150 MHz


Power supply

Vertical power supply - 11,5 - 14 V

Horizontal power supply - 16 - 19 V

LNB voltage supply - 11.5 ... 19 V

Power consumption - max. 190 mA


Technical data

Rated measurement 0.45 m

F/D - 0.6

Gain - 32.2 dBi @11,3 GHz

Offset angle - 30 °

Feed reception - 40 mm

LNB not included
