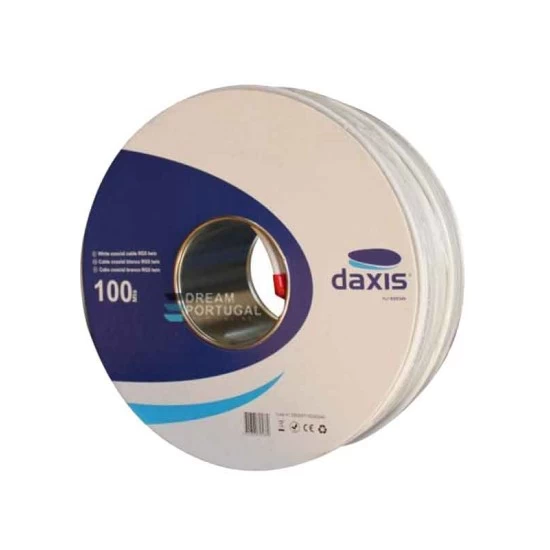

Daxis White Coaxial RG5 Twin

Daxis White Coaxial RG5 Twin

0.56€
Ex Tax: 0.46€
Brand:Daxis
Product Code: ED0340
Stock Instock

Overview

Daxis White Coaxial RG5 TwinDaxis White Coaxial RG5 TwinRef: ED0340Construction parametersInner Conductor Diameter (mm): 0,8 ± 0,02 - Cu - 100%Dielectric Diameter (mm): 3,5 ± 0,1 - PEFoil: 1...

Available Options

Daxis White Coaxial RG5 Twin

Daxis White Coaxial RG5 Twin

Ref: ED0340


Construction parameters

Inner Conductor Diameter (mm): 0,8 ± 0,02 - Cu - 100%

Dielectric Diameter (mm): 3,5 ± 0,1 - PE

Foil: 100% Al

Braid Wires: 16x6x0,12 mm Al

Coverage (%): 77

External coverage Diameter (mm): 5,0 ± 0,1 PVC

Impedance: 75 +/- 3 Ohms

Velocity Ratio: 0,85

Attenuation 20ºC dB - 100m

Frequency:

50

100

200

800

1000

1250

2150

2250


dB/100mt +/- 3%

6,2

8,1

11,6

23,0

26,5

29,5

40,9

42,0


ROHS - Yes
