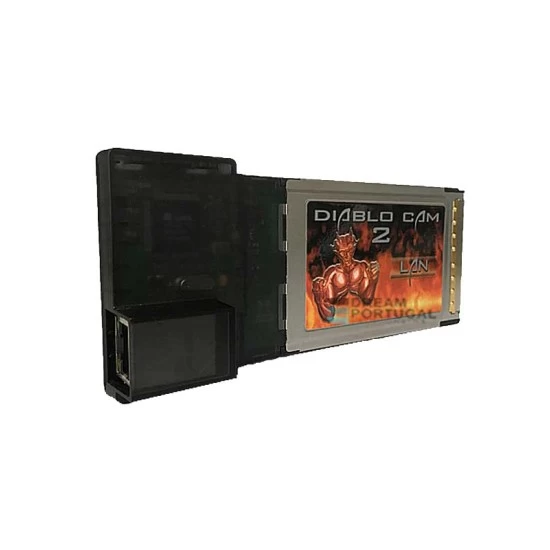

Diablo Cam 2 LAN

Diablo Cam 2 LAN

129.00€
Ex Tax: 104.88€
Brand:Duolabs
Product Code: Diablo Cam 2 LAN
Stock 2-3 Days

Overview

Diablo Cam 2 LANEthernet (LAN) Conditional Access Module for DVB-S/2 - DVB-T/2 - DVB-C/2Diablo CAM 2 LAN is a unique in its kind Conditional Access Modules (CAM) for Common Interface host de...

Diablo Cam 2 LAN

Ethernet (LAN) Conditional Access Module for DVB-S/2 - DVB-T/2 - DVB-C/2


Diablo CAM 2 LAN is a unique in its kind Conditional Access Modules (CAM) for Common Interface host devices with Ethernet Connection.

It is capable to descramble MPEG2 and MPEG4 Transport Streams in DVB format with advanced and fast PID filtering.


Diablo CAM 2 Lsn embeds Duo Crypt Conditional Access System.

DuoCrypt is a DVB certified CAS (CAID: 4B03) with cost effetive implementation.

DuoCrypt offers a Smartcard-less solution for small and big content providers working in Simulcrypt with existing Conditional Access Systems.


In terms of security Diablo CAM 2 LAN is extremely secure thanks to the internal Control Word management directly connected to the Common Scrambling Algorithm.

No Control Word is ever exchanged with the outside world offering a real solution to Internet Key Sharing aka Card-Sharing problem.


Diablo CAM 2 LAN, why so innovative?

Innovation is given by the Ethernet connection which allows the device to connect to a netwrok surfing on the Internet.

Rock-solid TCP-IP Stack implemented, DHCP or Static IP

Ethernet connection offers to providers the possibility to send selective Control Word to a specific device granting the vision of specific channels only and giving a feedback of what channels in on show at any time.

This opportunity enhances the security and a real time control on the broadcasted channels and more offers a feedback channel for statistics and market research based on watched channels and more.

On-Screen pop-up messages can be delivered directly to each single customer or range of customers. Commercial advertising can be directly offered to a specific group of customers.

Promotional subscriptions can be enabled based on watched-time per channel.


Diablo CAM 2 LAN is also hosting one smartcard in an exclusive design unique in its kind.


Hardware Features

  • ARM7TDMI @ 50Mhz.
  • FPGA @ 100Mhz processing speed.
  • RAM: Internal 16 KB and External 1MB.
  • ROM: 256KB Internal Flash and 2MB Dataflash.
  • Secure J-tag connection.
  • 1 Smartcard Reader ISO format
  • 2 Unique serial Numbers internally lasered inside
  • Supports 3,3 and 5,0 Volts Smartcards
  • Ethernet 10 MBit - IEEE 802.3


Software Features

  • PICO-OS Operating System
  • Dataflash internal Filesystem FAT 12
  • Fully programmable via PCMCIA secure protocol
  • TCP-IP Stack implemented
  • DHCP or Static IP
  • Tiny Web Server supported
