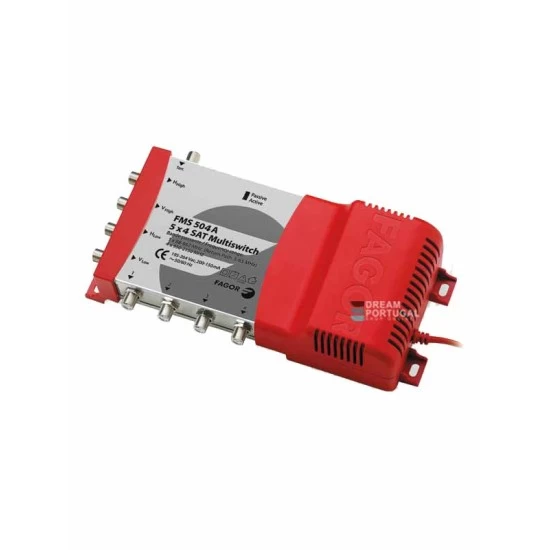

Fagor Multiswitch FMS 504 A

Fagor Multiswitch FMS 504 A

89.00€
Ex Tax: 72.36€
Product Code: FMS 504 A
Stock Instock

Overview

Fagor Multiswitch FMS 504 AFagor Multiswitch FMS 504 A - Self-Powered IF Multiswitch 4+1 inputs / 4 outputsFrequency RangeReturn Path - 5 ÷ 65Terrestrial - 88 ÷ 862Satellite - 950 ÷ 2150Gain...

Fagor Multiswitch FMS 504 A

Fagor Multiswitch FMS 504 A - Self-Powered IF Multiswitch 4+1 inputs / 4 outputs


Frequency Range

Return Path - 5 ÷ 65

Terrestrial - 88 ÷ 862

Satellite - 950 ÷ 2150


Gain

Return Path:  -15dB

Terrestrial Passive*: -17dB

Terr Active*: 5 ± 2.0

Satellite:  -4 ± 2.0


Max. output Level

Terrestrial Active* (-60 dB IM3): 90dBμv

SAT (-35 dB IM3): 105dBμv

Polarisation control: 13 Vdc / 18 Vdc 0 / 22 KHz

Max. LNB’s current: 600mA

Current consumption from receiver: Max. 65mA

Supply voltage: 230 ± 15% / 50 Hz

Operating temperature:  -10 a 55

Only for indoor use

Risk of electric shock, do not open whithout unplug.
