Fagor End Outlet BSD 203 DC

Fagor End Outlet BSD 203 DC

6.50€
Ex Tax: 5.28€
Product Code: BSD 203 DC
Stock Instock

Overview

Fagor End Outlet BSD 203 DCFagor End outlet TV/FM-SAT with DC Bypass.Nº of outputs2Band coverage MHz - 5 ÷ 2300DC bypass SAT 300 mA. maxYesThrough losses 5 ÷ 30 MHz - End47 ÷ 862 MHz - End95...

Fagor End Outlet BSD 203 DC

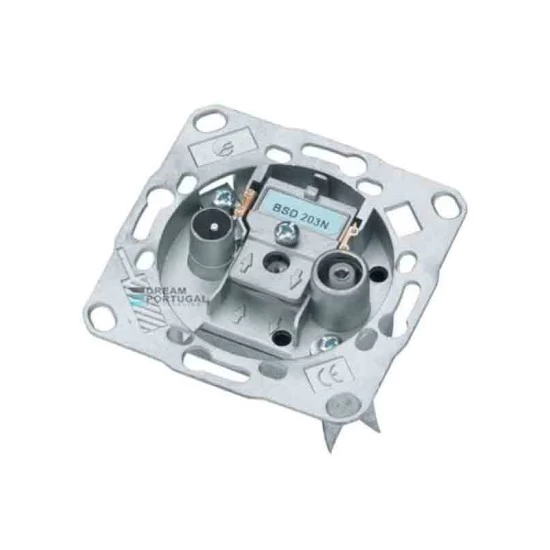

Fagor End outlet TV/FM-SAT with DC Bypass.


Nº of outputs

  • 2

Band coverage

  • MHz - 5 ÷ 2300

DC bypass SAT 300 mA. max

  • Yes

Through losses

5 ÷ 30 MHz - End

47 ÷ 862 MHz - End

950 ÷ 2150 MHz - End

2150 ÷ 2300 MHz - End


Derivation losses

  • 5 ÷ 30 MHz dB 2,0
  • 47 ÷ 862 MHz dB 3,0
  • 950 ÷ 2150 MHz dB 3,0
  • 2150 ÷ 2300 MHz dB 3,0


Isolation

  • 5 ÷ 30 MHz dB 30
  • 47 ÷ 862 MHz dB 15
  • 950 ÷ 2150 MHz dB 15
  • 2150 ÷ 2300 MHz dB 18


Return losses

  • 5 ÷ 862 MHz dB 10
  • 950 ÷ 2300 MHz dB 6


Shielding factor

  • VHF 30 ÷ 300 MHz dB 75
  • UHF 300 ÷ 862 MHz dB 65
  • SAT 950 ÷ 2300 MHz dB 55


Output connectors

  • TV - IEC 9,5 (h)/(f) IEC 9,5 (h) / (f)
  • SAT - F (h)/(f) IEC 9,5 (m) / (m)
